产品描述

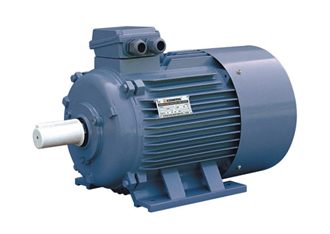

Y2 系列三相异步电动机由全国统一设计，产品达到90年代国际先进水平，是Y系列电机的更新换代产品，具有结构新颖、造型美观、低振动、代噪声等特点。
防护等级：IP54 或 IP55
绝缘等级：F,B
冷却方式：IC0141 使用条件：
环境温度： -15℃≤θ≤40℃
海拔：不超过1000m
额定电压：± 5%
防护等级：IP54 或 IP55
绝缘等级：F,B
冷却方式：IC0141 使用条件：
环境温度： -15℃≤θ≤40℃
海拔：不超过1000m
额定电压：± 5%
- 技术参数
- 性能曲线图
型号 功率
(kw)电流
(A)功率因数 效 率(%) 转速
(r/min)堵转转矩
额定转矩堵转电流
额定电流最大转矩
额定转矩净重 包装尺寸
(cm)380V 50Hz Synchronous Speed 3000 r/min (2 Poles) Y2-631-2 0.18 0.51 0.80 65.0 2730 2.2 5.5 2.2 9 27.5x22.8x18.5 Y2-362-2 0.25 0.67 0.81 68.0 2725 2.2 5.5 2.2 10 27.5x22.8x18.5 Y2-711-2 0.37 0.98 0.81 70.0 2725 2.2 6.1 2.2 13 30x24.5x20 Y2-712-2 0.55 1.33 0.82 73.0 2725 2.2 6.1 2.3 14 30x24.5x20 Y2-801-2 0.75 1.78 0.83 75.0 2845 2.2 6.1 2.3 15 36x31x22.8 Y2-802-2 1.1 2.49 0.84 77.0 2840 2.2 7 2.3 17 36x31x22.8 Y2-90S-2 1.5 3.34 0.84 79.0 2840 2.2 7 2.3 26 41x33x25 Y2-90L-2 2.2 4.69 0.85 81.0 2840 2.2 7 2.3 28 41x33x25 Y2-100L-2 3 6.14 0.87 83.0 2860 2.2 7.5 2.3 41 47x37x29 Y2-112M-2 4 7.83 0.88 85.0 2880 2.2 7.5 2.3 53 48x39x31 Y2-132S1-2 5.5 10.70 0.88 86.0 2900 2.2 7.5 2.3 77 55x43x35 Y2-132S2-2 7.5 14.20 0.88 87.0 2900 2.2 7.5 2.3 85 55x43x35 Y2-160M1-2 11 20.90 0.89 88.0 2920 2.2 7.5 2.3 130 75x50x42 Y2-160M2-2 15 27.90 0.89 89.0 2920 2.2 7.5 2.3 140 75x50x42 Y2-160L-2 18.5 33.90 0.90 90.0 2920 2.2 7.5 2.3 200 81x57x46.5 Y2-180M-2 22 40.50 0.90 90.0 2930 2 7.5 2.3 217 81x57x46.5 Y2-200L1-2 30 54.80 0.90 91.2 2940 2 7.5 2.3 230 84x61.5x49 Y2-200L2-2 37 66.60 0.90 92.0 2940 2 7.5 2.3 249 84x61.5x49 Y2-225M-2 45 81.00 0.90 92.3 2960 2 7.5 2.3 260 94x64x57 Y2-250M-2 55 99.60 0.90 92.5 2960 2 7.5 2 400 103x75x68 Y2-280S-2 75 136.1 0.90 93.0 2970 2 7.5 2.3 Y2-280M-2 90 162 0.90 93.8 2970 2 7.5 2.3 Y2-315S-2 110 195.4 0.91 94 2980 1.8 7.1 2.2 Y2-315M-2 132 233.2 0.91 94.5 2980 1.8 7.1 2.2 Y2-315L1-2 160 279.3 0.92 94.6 2980 1.8 7.1 2.2 Y2-315L2-2 200 348.4 0.92 94.8 2980 1.8 7.1 2.2 380V 50Hz Synchronous Speed 1500 r/min (4 Poles) Y2-631-4 0.12 0.43 0.72 57.0 1315 2.1 4.4 2.2 9 27.5x22.8x18.5 Y2-632-4 0.18 0.61 0.73 60.0 1315 2.1 4.4 2.2 10 27.5x22.8x18.5 Y2-711-4 0.25 0.76 0.74 65.0 1345 2.1 5.2 2.2 13 30x24.5x20 Y2-712-4 0.37 1.07 0.75 67.0 1340 2.1 5.2 2.2 14 30x24.5x20 Y2-801-4 0.55 1.54 0.75 71.0 1390 2.4 5.2 2.3 15 36x31x22.8 Y2-802-4 0.75 1.99 0.76 73.0 1380 2.3 6 2.3 17 36x31x22.8 Y2-90S-4 1.1 2.80 0.77 750 1390 2.3 6 2.3 26 41x33x25 Y2-90L-4 1.5 3.65 0.79 78.0 1390 2.3 6 2.3 28 41x33x25 Y2-100L1-4 2.2 5.05 0.81 80.0 1410 2.3 7 2.3 41 47x37x29 Y2-100L2-4 3 6.64 0.82 82.0 1410 2.3 7 2.3 43 47x37x29 Y2-112M-4 4 8.62 0.82 84.0 1410 2.3 7 2.3 53 48x39x31 Y2-132S-4 5.5 11.50 0.83 85.0 1435 2.3 7 2.3 77 55x43x35 Y2-132M-4 7.5 15.30 0.84 87.0 1445 2.3 7 2.3 86 60x43x35 Y2-160M-4 11 22.20 0.84 88.0 1445 2.2 7 2.3 130 75x50x42 Y2-160L-4 15 29.80 0.85 89.0 1450 2.2 7.5 2.3 140 75x50x42 Y2-180M-4 18.5 36.10 0.86 90.5 1450 2.2 7.5 2.3 200 81x57x46.5 Y2-180L-4 22 42.60 0.86 91.0 1460 2.2 7.5 2.3 217 81x57x46.5 Y2-200L-4 30 57.20 0.86 92.0 1460 2.2 7.2 2.3 230 84x61.5x49 Y2-225S-4 37 69.60 0.87 92.5 1470 2.2 7.2 2.3 250 94x64x57 Y2-225M-4 45 84.00 0.87 92.8 1480 2.2 7.2 2.3 260 94x94x57 Y2-250M-4 55 102.90 0.87 93.0 1470 2.2 7.2 2.2 400 103x75x68 Y2-280S-4 75 139.6 0.87 93.8 1480 2.2 7.2 2.3 Y2-280M-4 90 166.9 0.87 94.2 1490 2.2 7.2 2.3 Y2-315S-4 110 201 0.88 94.5 1490 2.1 6.9 2.2 Y2-315M-4 132 240.4 0.88 94.8 1490 2.1 6.9 2.2 Y2-315L1-4 160 287.8 0.89 94.9 1490 2.1 6.9 2.2 Y2-315L2-4 200 359.4 0.89 95.0 1490 2.1 6.9 2.2 380V 50Hz Synchronous Speed 1000 r/min (6 Poles) Y2-711-6 0.18 0.71 0.66 56.0 900 1.9 4 2 13 30x24.5x20 Y2-712-6 0.25 0.92 0.68 59.0 900 1.9 4 2 14 30x24.5x20 Y2-801-6 0.37 1.27 0.70 62.0 900 1.9 4.7 2 15 36x31x228 Y2-802-6 0.55 1.74 0.72 65.0 900 1.9 4.7 2.1 17 36x31x228 Y2-90S-6 0.75 2.23 0.72 69.0 910 2 5.5 2.1 26 41x33x25 Y2-90L-6 1.1 3.10 0.73 72.0 910 2 5.5 2.1 28 41x33x25 Y2-100L-6 1.5 3.89 0.75 76.0 940 2 5.5 2.1 41 47x37x29 Y2-112M-6 2.2 5.46 0.76 79.0 940 2 6.5 2.1 53 48x39x31 Y2-132S-6 3 7.10 0.76 81.0 960 2.1 6.5 2.1 77 55x43x35 Y2-132M1-6 4 9.30 0.76 82.0 960 2.1 6.5 2.1 86 60x43x35 Y2-132M2-6 5.5 12.30 0.77 84.0 960 2.1 6.5 2.1 95 60x43x35 Y2-160M-6 7.5 16.70 0.77 86.0 970 2 6.5 2.1 130 75x50x42 Y2-160L-6 11 23.60 0.78 87.5 970 2 6.5 2.1 140 75x50x42 Y2-180L-6 15 30.70 0.81 89.0 970 2 7 2.1 217 81x57x46.5 Y2-200L1-6 18.5 37.70 0.81 90.0 970 2.1 7 2.1 230 84x61.5x49 Y2-200L2-6 22 44.10 0.83 90.0 970 2.1 7 2.1 249 84x61.5x49 Y2-225M-6 30 58.40 0.84 91.5 980 2 7 2.1 260 94x64x57 Y2-250M-6 37 70.40 0.86 92.0 965 2.1 7 2.1 400 103x75x68 Y2-280S-6 45 85.95 0.86 92.5 980 2.1 7 2 Y2-280M-6 55 104.7 0.86 92.8 980 2.1 7 2 Y2-315S-6 75 141.7 0.86 93.5 990 2 7 2 Y2-315M-6 90 169.5 0.86 93.8 990 2 7 2 Y2-315L1-6 110 206.7 0.86 94 990 2 6.7 2 Y2-315L2-6 132 244.7 0.87 94.2 990 2 6.7 2 380V 50Hz Synchronous Speed 750 r/min (8 Poles) Y2-801-8 0.18 0.86 0.61 51.0 700 1.8 3.3 1.9 15 36x31x228 Y2-802-8 0.25 1.14 0.61 54.0 700 1.8 3.3 1.9 17 36x31x228 Y2-90S-8 0.37 1.47 0.61 62.0 700 1.8 4 1.9 26 41x33x25 Y2-90L-8 0.55 2.10 0.61 63.0 700 1.8 4 2 28 41x33x25 Y2-100L1-8 0.75 2.34 0.67 71.0 710 1.8 4 2 41 47x37x29 Y2-100L2-8 1.1 3.22 0.69 73.0 710 1.8 5 2 43 47x37x29 Y2-112M-8 1.5 4.41 0.69 75.0 700 1.8 5 2 53 48x39x31 Y2-132S-8 2.2 6.00 0.71 78.0 710 1.8 6 2 77 55x43x35 Y2-132M-8 3 7.60 0.73 79.0 710 1.8 6 2 86 60x43x35 Y2-160M1-8 4 10.00 0.73 81.0 720 1.9 6 2 130 75x50x42 Y2-160M2-8 5.5 13.30 0.74 83.0 720 2 6 2 130 75x50x42 Y2-160L-8 7.5 17.80 0.75 85.5 720 2 6 2 140 75x50x42 Y2-180L-8 11 24.90 0.76 87.5 730 2 6.6 2 217 81x57x46.5 Y2-200L-8 15 33.30 0.76 88.0 730 2 6.6 2 230 84x61.5x49 Y2-225S-8 18.5 40.10 0.76 90.0 730 1.9 6.6 2 250 94x64x57 Y2-225M-8 22 46.80 0.78 90.5 740 1.9 6.6 2 260 94x64x57 Y2-250M-8 30 63.00 0.79 91.0 740 1.9 6.6 2 400 103x75x68 Y2-280S-8 37 77.77 0.79 91.5 740 1.9 6.6 2 Y2-280M-8 45 94.07 0.79 92.0 740 1.9 6.6 2 Y2-315S-8 55 111.2 0.81 92.8 740 1.8 6.6 2 Y2-315M-8 75 151.3 0.81 93.0 740 1.8 6.6 2 Y2-315L1-8 90 177.8 0.82 93.8 740 1.8 6.6 2 Y2-315L2-8 110 216.8 0.82 94.0 740 1.8 6.6 2 机座号 安装尺寸 外型尺寸(mm) A B C D E F G H K M N P R S T AB AC AD HD HF L 63 100 80 40 11 23 4 8.5 63 7 115 95 140 0 10 3 135 130 70 180 130 225 71 112 90 45 14 30 5 11 71 7 130 110 160 0 10 3.5 150 145 80 195 145 250 80 125 100 50 19 40 6 16 80 10 165 130 200 0 12 3.5 165 175 145 214 185 295 90S 140 100 56 24 50 8 20 90 10 165 130 200 0 12 3.5 180 195 155 250 195 315 90L 140 125 56 24 50 8 20 90 10 165 130 200 0 12 3.5 180 195 155 250 195 340 100L 160 140 63 28 60 8 24 100 12 215 180 250 0 15 4 205 215 180 270 245 385 112M 190 140 70 28 60 8 24 112 12 215 180 250 0 15 4 230 240 190 300 265 400 132S 216 140 89 38 80 10 33 132 12 265 230 300 0 15 4 270 275 210 345 315 470 132M 216 178 89 38 80 10 33 132 12 265 230 300 0 15 4 270 275 210 345 315 510 160M 254 210 108 42 110 12 37 160 15 300 250 350 0 19 5 320 330 255 420 385 615 160L 254 254 108 42 110 12 37 160 15 300 250 350 0 19 5 320 330 255 420 385 670 180M 279 241 121 48 110 14 43 180 15 300 250 350 0 19 5 355 380 280 455 430 700 180L 279 279 121 48 110 14 43 180 15 300 250 350 0 19 5 355 380 280 455 430 740 200L 318 305 133 55 110 16 49 200 19 350 300 400 0 19 5 375 420 305 545 480 770 225S 356 286 149 60 110 18 53 225 19 450 350 450 0 19 5 435 470 335 555 535 815 225M-2 356 311 149 55 110 16 49 225 19 450 350 450 0 19 5 435 470 335 555 535 820 225M 356 311 149 60 140 18 53 225 19 450 350 450 0 19 5 435 470 335 555 535 845
