Y SERIES THREE-PHASE ASYNCHRONOUS MOTORS

  • Y SERIES THREE-PHASE ASYNCHRONOUS MOTORS

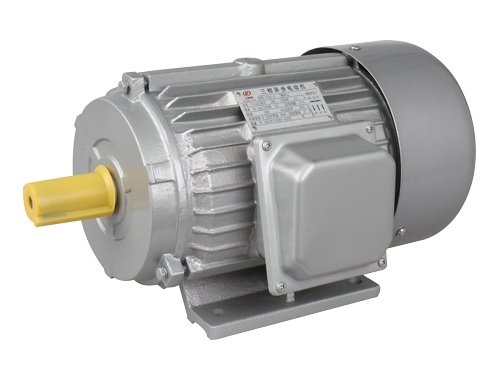

Description

Y Series motor is totally enclosed and fan cooling, three-phase squirrel cage induction motor. It is newly deigned in conformity with the relevant rules of IEC and DIN42673 standards.
Y series motors have outstanding performance, such as high efficiency, less comsuption, high starting torque, low noise, little vibration, reliable operation and easy maintenance etc.
Y series motors are widely used in many places, where do not exist combustible, explosive or corrosive gas, without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines etc.

Operating Condiyions:
Ambient temperature: -15℃≤θ≤40℃
Above sea level: not exceed 1000m Rated voltage: ±5%
  • Parameter
  • Curve
  • Type Output Current
    (A)
    Power
    Eff
    (%)
    Speed
    (r/min)
    Tstart/Tn Ist/In Tmax/Tn
    kW HP
    Y801-2 0.75 1 1.8 0.84 75 2830 2.2 6.5 2.3
    Y802-2 1.1 1.5 2.5 0.86 77 2830 2.2 7 2.3
    Y801-4 0.55 0.75 1.5 0.76 73 1390 2.4 6 2.3
    Y802-4 0.75 1 2 0.76 74.5 1390 2.3 6 2.3
    Y90S-2 1.5 2 3.4 0.85 78 2840 2.2 7 2.3
    Y90L-2 2.2 3 4.8 0.86 80.5 2840 2.2 7 2.3
    Y90S-4 1.1 1.5 2.8 0.78 78 1400 2.3 6.5 2.3
    Y90L-4 1.5 2 3.7 0.79 79 1400 2.3 6.5 2.3
    Y90S-6 0.75 1 2.3 0.7 72.5 910 2 5.5 2.2
    Y90L-6 1.1 1.5 3.2 0.72 73.5 910 2 5.5 2.2
    Y100L-2 3 4 6.4 0.87 82 2870 2.2 7 2.3
    Y100L1-4 2.2 3 5 0.82 81 1430 2.2 7 2.3
    Y100L2-4 3 4 6.8 0.81 82.5 1430 2.2 7 2.3
    Y100L-6 1.5 2 4 0.74 77.5 940 2 6 2.2
    Y112M-2 4 5.5 8.2 0.87 85.5 2890 2.2 7 2.3
    Y112M-4 4 5.5 8.8 0.82 84.5 1440 2.2 7 2.3
    Y112M-6 2.2 3 5.6 0.74 80.5 940 2.2 6 2.2
    Y132S1-2 5.5 7.5 11.1 0.88 85.5 2900 2 7 2.3
    Y132S2-2 7.5 10 15 0.88 86.2 2900 2 7 2.3
    Y132S-4 5.5 7.5 11.7 0.84 85.5 1440 2.2 7 2.3
    Y132M-4 7.5 10 15.4 0.85 87 1440 2 7 2.3
    Y132S-6 3 4 7.3 0.76 83 960 2 6.5 2.2
    Y132M1-6 4 5.5 9.4 0.77 84 960 2 6.5 2.2
    Y132M2-6 5.5 7.5 12.6 0.78 85.3 960 2 6.5 2.2
    Y160M1-2 11 15 21.8 0.88 87.2 2930 2 7 2.2
    Y160M2-2 15 20 29.4 0.88 88.2 2930 2 7 2.2
    Y160L-2 18.5 25 35.5 0.89 89 2930 2 7 2.2
    Y160M-4 11 15 22.6 0.84 88 1460 2.2 7 2.2
    Y160L-4 15 20 30.3 0.85 88.5 1460 2.2 7 2.2
    Y160M-6 7.5 10 17 0.78 86 970 2 6.5 2
    Y160L-6 11 15 24.6 0.78 87 970 2 6.5 2
    Y180M-2 22 30 42.2 0.89 89 2940 2 7 2.2
    Y180M-4 18.5 25 35.9 0.86 91 1470 2 7 2.2
    Y180L-4 22 30 42.5 0.86 91.5 1470 2 7 2.2
    Y180L-6 15 20 31.6 0.81 89.5 970 1.8 6.5 2
    Y200L1-2 30 40 56.9 0.89 90 2950 2 7 2.2
    Y200L2-2 37 50 69.8 0.89 90.5 2950 2 7 2.2
    Y200L-4 30 40 56.8 0.87 92.2 1470 2 7 2.2
    Y200L1-6 18.5 25 37.7 0.83 89.8 970 1.8 6.5 2
    Y200L2-6 22 30 44.6 0.83 90.2 970 1.8 6.5 2
    Y225M-2 45 60 84.4 0.89 91 2970 2 7 2.2
    Y225S-4 37 50 69.9 0.87 92.5 1480 2 7 2.2
    Y225M-4 45 60 84.7 0.87 92.8 1480 2 7 2.2
    Y225M-6 30 40 59.3 0.84 91.5 980 1.8 6.5 2



    Frame
    No

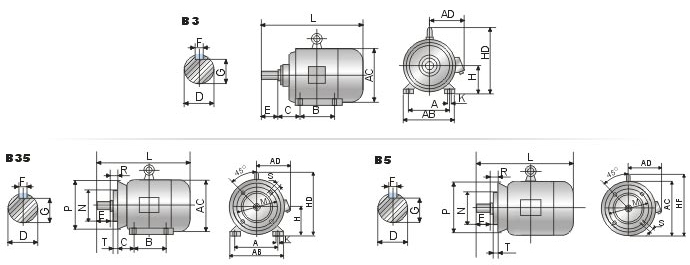

    Installation Size (mm) Overall Dimension(mm)
    A B C D E F G H K M N P R S T AB AC AD HD HF L
    Y80 125 100 50 19 40 6 15.5 80 10 165 130 200 0 12 3.5 165 175 150 175 185 290
    Y90S 140 100 56 24 50 8 20 90 10 165 130 200 0 12 3.5 180 195 160 195 195 315
    Y90L 140 125 56 24 50 8 20 90 10 165 130 200 0 12 3.5 180 195 160 195 195 340
    Y100L 160 140 63 28 60 8 24 100 12 215 180 250 0 15 4 205 215 180 245 245 380
    Y112M 190 140 70 28 60 8 24 112 12 215 180 250 0 15 4 245 240 190 265 265 400
    Y132S 216 140 89 38 80 10 33 132 12 265 230 300 0 15 4 280 275 210 315 315 475
    Y132M 216 178 89 38 80 10 33 132 12 265 230 300 0 15 4 280 275 210 315 315 515
    Y160M 254 210 108 42 110 12 37 160 15 300 250 350 0 19 5 330 335 265 385 385 605
    Y160L 254 254 108 42 110 12 37 160 15 300 250 350 0 19 5 330 335 265 385 385 650
    Y180M 279 241 121 48 110 14 42.5 180 15 300 250 350 0 19 5 355 380 285 430 430 670
    Y180L 279 279 121 48 110 14 42.5 180 15 300 250 350 0 19 5 355 380 285 430 430 710
    Y200L 318 305 133 55 110 16 49 200 19 350 300 400 0 19 5 395 420 315 475 480 775
    Y225S 356 286 149 60 140 18 49 225 19 400 350 450 0 19 5 435 475 345 530 535 820
    Y225M-2 356 311 149 55 110 16 49 225 19 400 350 450 0 19 5 435 475 345 530 535 815
    Y225M-4.6 356 311 149 60 140 18 53 225 19 400 350 450 0 19 5 435 475 345 530 535 845
