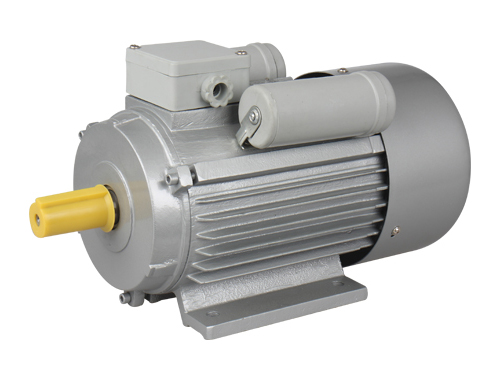

YC SINGLE PHASE HEAVY-DUTY CAPACITOR START MOTOR
- Location :
- Home
- >Products
- >Iron shell motors
.jpg)
Description
YC series heavy-duty single-phase motors of "Yuxing" brand are suitable for small size machine tools and water pumps, especially suitable for family workshops where only single-phase power be supplied. This series motors are designed with the latest technology, manufactured with the quality materials, have following features: good performance, safe and reliable operation, nice appearance, convenient maintenance, meet the IEC standards.
YC series motors are of IP44 totally enclosed fan-cooled (TEFC) type, capacitor starting for rated output up to 3HP, on rated voltage and 50Hz, the starting torque is three times more than the rated torque while 60Hz is 2.75 times more. Capacitors start and run type for Motors 4HP and above, it have following features: high starting torque, smooth running, low temperature rise, low noise and greater overload performance.
Operating Condiyions:
Ambient temperature: -15℃≤θ≤40℃ Above sea level: not exceed 1000m Rated voltage: ±5%
YC series motors are of IP44 totally enclosed fan-cooled (TEFC) type, capacitor starting for rated output up to 3HP, on rated voltage and 50Hz, the starting torque is three times more than the rated torque while 60Hz is 2.75 times more. Capacitors start and run type for Motors 4HP and above, it have following features: high starting torque, smooth running, low temperature rise, low noise and greater overload performance.
Operating Condiyions:
Ambient temperature: -15℃≤θ≤40℃ Above sea level: not exceed 1000m Rated voltage: ±5%
- Parameter
- Curve
Type Output Current
(A)Power
Eff
(%)Speed
(r/min)Tstart/Tn Ist/In Tmax/Tn kW HP YC711-2 0.18 1/4 1.9 0.7 63 2800 3 6.5 2 YC712-2 0.25 1/3 2.4 0.72 65 2800 3 6.5 2 YC80A-2 0.37 1/2 3.5 0.74 66 2840 3 6.5 2 YC80B-2 0.55 3/4 5.04 0.74 67 2850 3 6.5 2 YC80C-2 0.75 1 6.68 0.75 68 2850 3 6.5 2 YC90S-2 1.1 1.5 8.93 0.8 70 2850 2.8 7 2 YC90L-2 1.5 2 11.4 0.82 73 2870 2.8 7 2 YC100L-2 2.2 3 16.5 0.82 74 2900 2.5 7 2 YC112M1-2 3 4 21.4 0.84 76 2900 2.2 7 2 YC112M2-2 3.7 5 24.8 0.86 79 2900 2.2 7 2 YC711-4 0.12 1/6 1.9 0.58 48 1400 3 6 2 YC712-4 0.18 1/4 2.7 0.6 50 1400 3 6 2 YC80A-4 0.25 1/3 3.52 0.62 52 1400 3 6 2 YC80B-4 0.37 1/2 4.69 0.64 56 1400 3 6 2 YC80C-4 0.55 3/4 6 0.65 60 1400 3 6 2 YC90S-4 0.75 1 7.5 0.72 63 1400 2.8 6.5 2 YC90L-4 1.1 1.5 10.4 0.72 67 1420 2.8 6.5 2 YC100L-4 1.5 2 13 0.73 72 1440 2.8 6.5 2 YC112M-4 2.2 3 18.5 0.74 73 1450 2.5 6.5 2 YC132S1-4 3 4 22.4 0.8 76 1450 2.2 6.5 2 YC132S2-4 3.7 5 26 0.82 79 1450 2.2 6.5 2

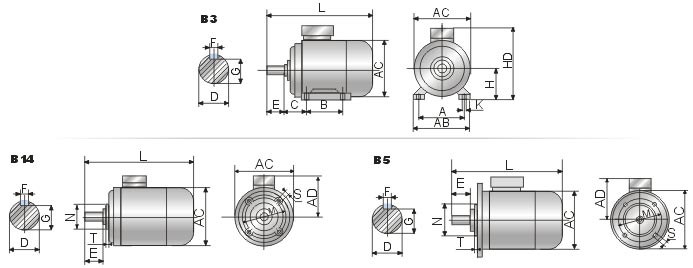

Frame
NoInstallation Size Overall Dimension(mm) A B C D E F G H K M N P R S T AB AC AD HD L 71 112 90 45 14 30 5 11 71 7 130 110 160 0 10 3.5 145 145 140 180 255 80 125 100 50 19 40 6 16 80 10 165 130 200 0 12 3.5 160 165 150 200 295 90S 140 100 56 24 50 8 20 90 10 165 130 200 0 12 3.5 180 185 160 240 370 90L 140 125 56 24 50 8 20 90 10 165 130 200 0 12 3.5 180 185 160 240 400 100L 160 140 63 28 60 8 24 100 12 215 180 250 0 15 4 205 220 180 260 430 112M 190 140 70 28 60 8 24 112 12 215 180 250 0 15 4 245 250 190 300 455 132S 216 140 89 38 80 10 33 132 12 265 230 300 0 15 4 280 290 210 350 525 132M 216 178 89 38 80 10 33 132 12 265 230 300 0 15 4 280 290 210 350 553
